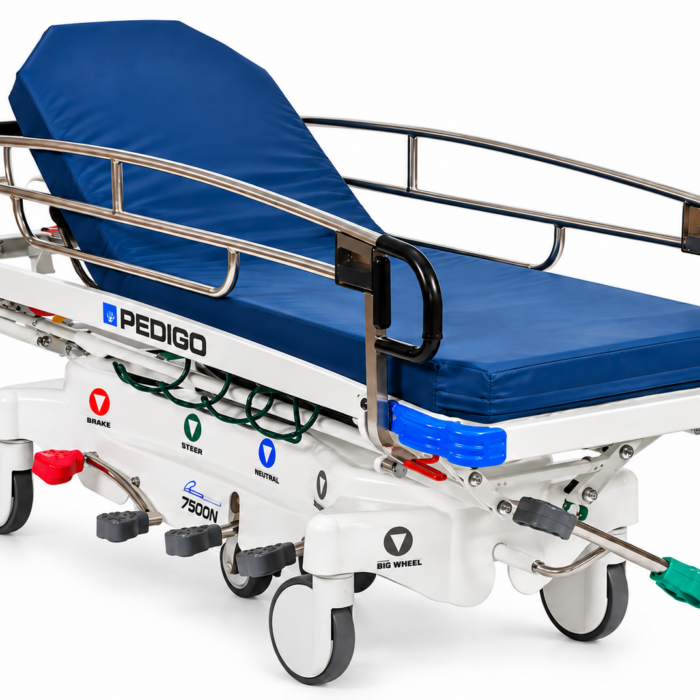

Pedigo 7500N Series Stretcher (Refurbished)
The Pedigo 7500 Series Stretcher is built for safe, comfortable patient transport throughout the hospital. With a 750 lb weight capacity, full-length tuck-away side rails, hydraulic height adjustment, Trendelenburg positioning and Pedigo’s IS6™ six-wheel steering system, the 7500 is well suited for OR, ED, PACU, Radiology, Cath Lab and general patient transport applications.
Key Features
- 750 lb patient weight capacity
- Pedigo IS6™ Instant Steer six-wheel steering
- Full-length tuck-away side rails with dual-release latches
- Hydraulic height adjustment with side-mounted foot pedals
- Positive and negative Trendelenburg positioning
- Pneumatic-assist Fowler backrest
- Quick-release side-mounted oxygen tank holder
- Integrated push/pull handles
- Center-column hydraulic lift design
- Brake and steer foot controls
- Four IV pole receptacles
- Four restraint strap positions
- High-impact corner bumpers
- 8″ mobility casters
- Mechanical level lock
The Pedigo 7500N Series Stretcher combines high patient capacity, smooth maneuverability and flexible positioning for use throughout a medical facility.
Designed with a 750 lb weight capacity, the stretcher uses Pedigo’s IS6™ Instant Steer six-wheel steering system to improve control and maneuverability in hallways and clinical environments. The two center steering wheels provide added traction and help caregivers guide the stretcher more easily during patient transport.
Full-length tuck-away side rails lower out of the way to create a minimal transfer gap when moving patients on or off the stretcher. Centrally located rail-release controls allow access from either side of the litter.
Hydraulic height controls are positioned within the caregiver work zone on both sides of the stretcher, while color-coded brake, steer and positioning controls make operation straightforward. Positive and negative Trendelenburg positioning and a pneumatic-assist Fowler section provide additional flexibility for patient positioning.
The 7500 Series also features Pedigo’s side-mounted Quick-Release O2 Tank Holder, integrated push/pull handles, IV pole receptacles, restraint strap locations and heavy-duty 8″ casters.
This unit is ideal for use in:
- Emergency Departments
- Operating Rooms
- PACU / Recovery
- Radiology
- Cath Labs
- General Patient Transport
Specifications
Weight Capacity: 750 lbs
Patient Surface: 77″ x 27″
Overall Width: 29.5″
Overall Depth: approximately 83″
Height: approximately 23″
Casters: 8″
Steering: IS6™ Instant Steer six-wheel system
Side Rails: Full-length tuck-away, dual release
Height Adjustment: Hydraulic
Trendelenburg: Positive and negative
Fowler: Pneumatic assist
Oxygen Tank Holder: Quick-release, side mounted
IV Pole Receptacles: 4
Restraint Strap Positions: 4
